0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays

  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
  • 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays
Luogo di origine Cina
Marca HuaXin
Certificazione ISO14001/ISO9001/IATF16949
Numero di modello ESHX090XZJR01
Quantità di ordine minimo 1000
Prezzo 1.5-2usd
Imballaggi particolari Blister+scatola di schiuma+sacca a bolle+all'interno del cartone+cartone
Tempi di consegna 6 settimane ~ 8 settimane
Termini di pagamento T/t
Capacità di alimentazione 50k al mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Visualizza tecnologia Display TFT rotondo Nome guarda il display oled
Misurare 0,9''Rotondo | Risoluzione 128*128 pixel
Tipo di visualizzazione Tft Interfaccia Sp
Evidenziare

0.9 inch round TFT LCD screen

,

128x128 high-definition round display

,

ST7735 driver round TFT screen
Lasciate un messaggio
Descrizione di prodotto
0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver
0.9" Round TFT LCD Display featuring 128x128 HD resolution, ST7735 driver IC, high contrast ratio, stable performance, and long lifespan. Ideal for commercial electronic products and DIY displays.
Product Parameters
Part No. ESHX090XZJR01
Driver IC ST7735
Outline Dimensions (L x W x H) 25.24mm x 27.14mm x 1.95mm
Active Area (L x W) 23.04mm x 23.04mm
Viewing Angle All directions
Operation Temperature -20°C to +70°C
Storage Temperature -30°C to 80°C
Supply Voltage 3.3V
Luminance 350TYP
Connection Type 4 S-PI

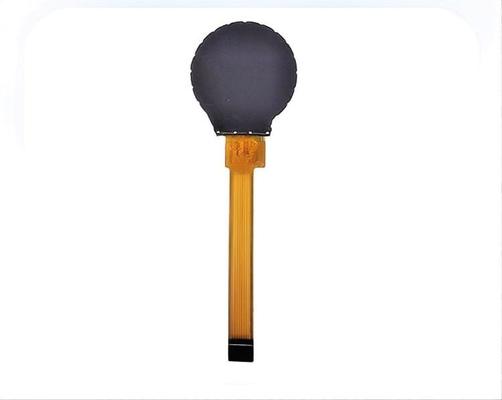

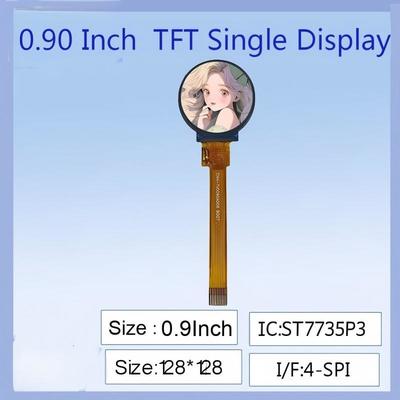

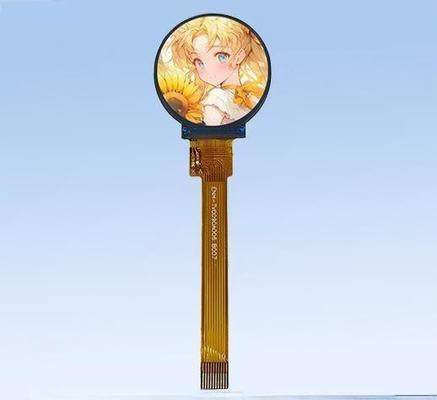

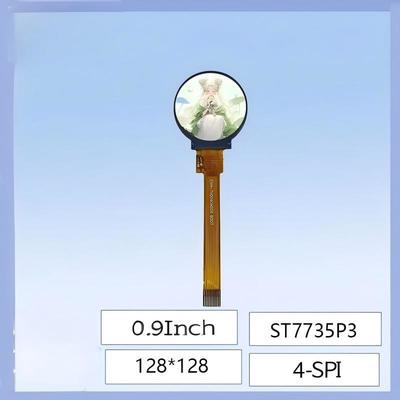

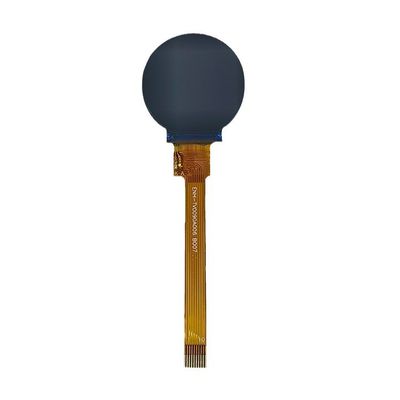

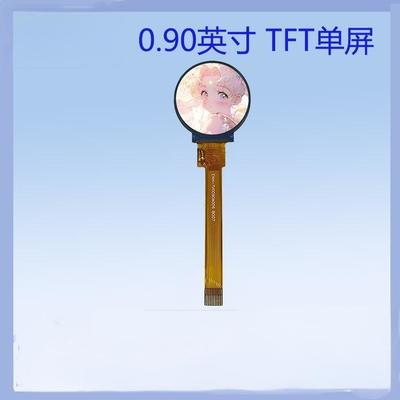

Product Images
0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 0 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 1 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 2 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 3 0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 4
Drawing & Pin Definition
0.9 Inch TFT LCD Round Screen - 128x128 High-Definition, ST7735 Driver, for Electronic Projects/DIY Displays 5
OLED Product Knowledge
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast ratio
  • Superior color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Company Information
Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: Research, development, and production of LCD, LCM, TFT, backlight, and OLED displays
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • Quality control: 15% of workforce
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Huaxin Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom product design capabilities
Production Capacity
Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios
  • Collimators & navigators
AMOLED Display Characteristics
  • Self-emissive pixels
  • Superior contrast ratio
  • Excellent color accuracy and vibrancy
  • Wide viewing angles
  • Power efficiency
  • Thinness and flexibility
  • Fast response time
AMOLED Power Efficiency Comparison
Power Consumption
  • AMOLED: Power consumption per pixel (black pixels consume minimal power)
  • LCD/LED: Constant backlight power regardless of content
Content Dependency
  • AMOLED: More efficient for dark content (pixels can turn off)
  • LCD/LED: Constant power consumption regardless of content
Brightness Control
  • AMOLED: Dynamic pixel brightness adjustment
  • LCD/LED: Fixed backlight brightness
Display Size Impact
  • AMOLED: More efficient for smaller displays
  • LCD/LED: Larger displays require more powerful backlights
