2.64 inch tft color display, 480*480 dots MIPI interface 400c/d square tft display
| Luogo di origine | Cina |
|---|---|
| Marca | HuaXin |
| Certificazione | ISO14001/ ISO9001/IATF16949 |
| Numero di modello | HX0264F002 |
| Quantità di ordine minimo | 1000 |
| Prezzo | Negoziabile |
| Imballaggi particolari | Blister+scatola di schiuma+sacca a bolle+all'interno del cartone+cartone |
| Tempi di consegna | 6 settimane ~ 8 settimane |
| Termini di pagamento | T/t |
| Capacità di alimentazione | 100 mila al mese. |
Contattimi gratis campioni e buoni.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Se avete di preoccupazione, forniamo la guida in linea di 24 ore.
xDettagli
| Visualizza tecnologia | display TFT a colori | Nome | schermo a colori del tft |
|---|---|---|---|
| Misurare | 2,64" | Risoluzione | 480*480 |
| Luminosità | 400cd/m2 | Visualizza angolo | angolo di visione libera |
| Interfaccia | Mipi | ||
| Evidenziare | 2.64 inch TFT color display,480x480 dots MIPI TFT display,400cd square TFT display |
||
Descrizione di prodotto
2.64 inch TFT Color Display, 480×480 Dots MIPI Interface 400c/d Square TFT Display
Product Description
High-quality 2.64 inch TFT color display featuring 480×480 resolution with MIPI interface and 400 candela brightness. Ideal for various industrial and commercial applications requiring crisp, clear visual output.
Product Parameters
| Part No: | HX0264F002 |
|---|---|
| Display Mode | 2.64 inch TFT display |
| Outline Size (mm) | 46.2×51.38×1.76 |
| AA Size (mm) | 43.2×43.2 |
| Display Dots | 480×480 |
| View Angle | ALL |
| Brightness | 400c/d |
| Interface | MIPI |
| Driving IC | ST7701 |

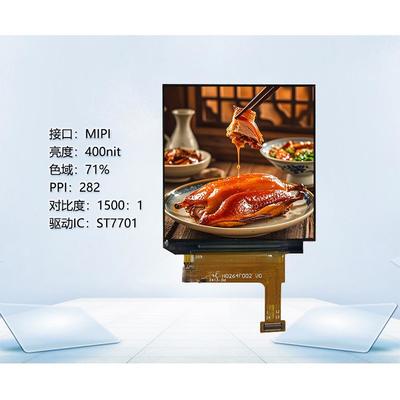

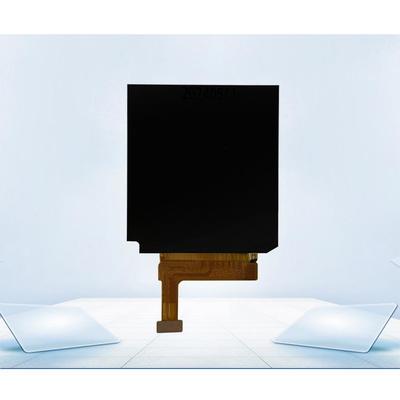

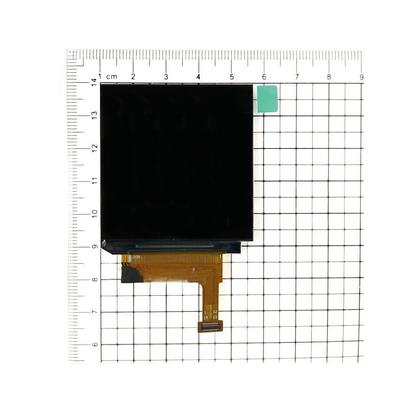

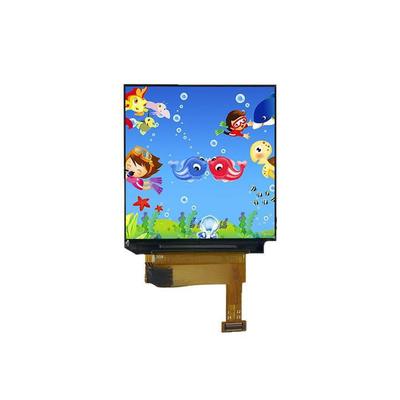

Product Images
Technical Drawing
TFT Product Knowledge
Company Information
Huaxin Technology Advantages:
- Cost-effective factory base located in inland city
- Advanced equipment ensuring stable quality
- Most processes use fully automatic equipment for efficiency and quality
- Professional engineers with over 20 years experience in LCD field
- Self-design capability for customized products
Certifications:
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Company Details:
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
High-tech enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
LCD product range: VA, TN, HTN, STN, FSTN, CSTN and other series
LCM product range: COB, TBA, COG, TP, LED backlight and other series
Registered capital: 20 million
Current staff: 500+
R&D accounts for 10%
QC accounts for 15%
Production Capacity
| Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Car navigation & printer
- Video call & advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control and home appliances
TFT Display Characteristics
- Image Quality: Excellent with high resolution, sharpness, and color accuracy
- Response Time: Fast switching of pixels
- Viewing Angles: Wide viewing angles with minimal color shift
- Energy Efficiency: More efficient than other display technologies
- Size and Flexibility: Available in various sizes from small handheld to large panels
- Backlighting: Typically uses LED backlighting
- Wide Applications: Suitable for diverse industries
TFT Display Limitations
- Viewing Angles: Some models may have limited optimal viewing angles
- Contrast Ratio: May be limited compared to other technologies
- Power Consumption: Backlighting can increase power usage
- Response Time: Potential for motion blur in fast-moving images
- Flexibility: Less flexible than some newer display technologies
- Color Gamut: May have limited color range in some models
