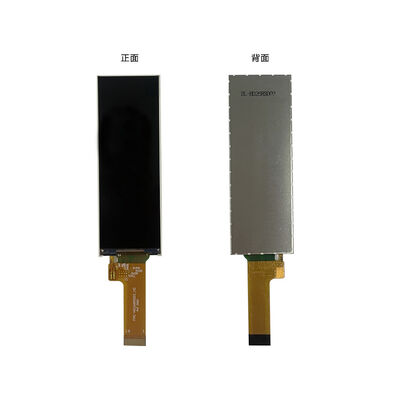

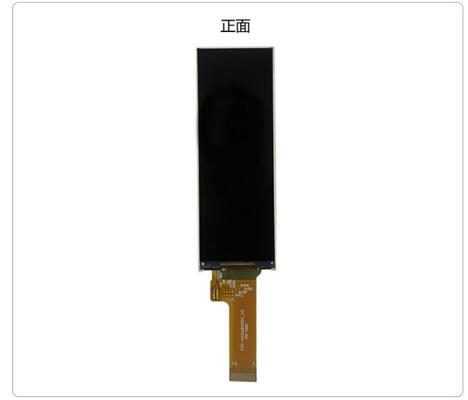

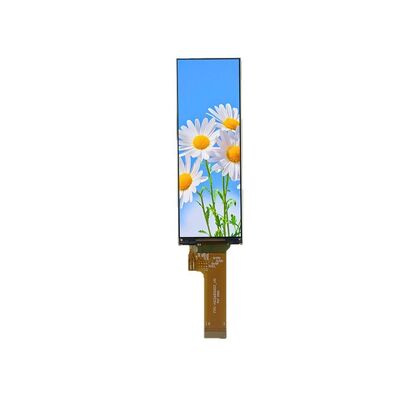

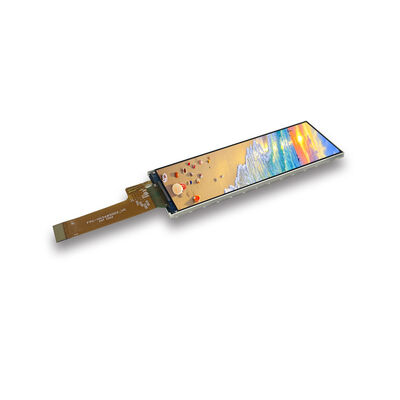

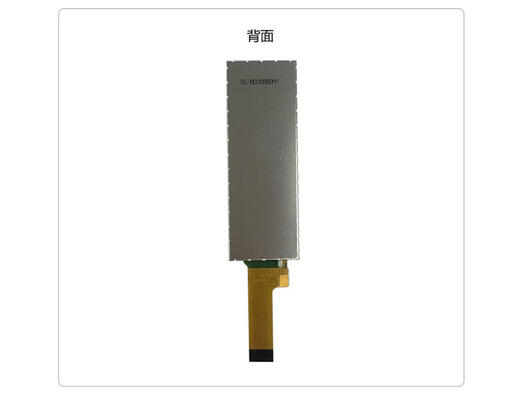

2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface

  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
  • 2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface
Luogo di origine Cina
Marca HuaXin
Certificazione ISO14001/ISO9001/IATF16949
Numero di modello HX0268S003T003
Documento HX0268S003T003-SPEC.pdf
Quantità di ordine minimo 1000
Prezzo Negoziabile
Imballaggi particolari Blister+scatola di schiuma+sacca a bolle+all'interno del cartone+cartone
Tempi di consegna 6 settimane ~ 8 settimane
Termini di pagamento T/T
Capacità di alimentazione 100 mila al mese.

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Visualizza tecnologia Tipo di barra LCD Nome Tipo di barra TFT
Misurare 2,68" Risoluzione 142RGBx428
Luminosità 450 Visualizza angolo angolo di visione libera
Interfaccia QSPI Guida IC NV3007
Pannello a sfioramento CTP
Puoi spuntare i prodotti di cui hai bisogno e comunicare con noi nella bacheca.
Lasciate un messaggio
Descrizione di prodotto
2.68 Inch Bar Type TFT LCD Display Module with  touch panel  142RGB x 428  Resolution and QSPI interface

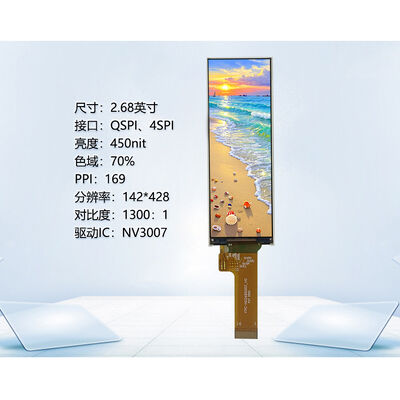

Product Specifications
Part No. HX0268S003T003
Display Size 2.68 inch tft display
Outline Size (mm) 24.38(H) ×69.43(V)×2.09(T)
AA Size (mm) 21.28(H)×64.14(V)
Resolution 142RGB x 428
Interface QSPI
Brightness 450
View Angle all
Driving IC  NV3007
Touch screen CTP
Technical Drawing
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface 0

TFT Technology Overview
TFT Substrate and CF Substrate Input Flow
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface 1
TFT Structure
2.68 Inch Bar Type TFT LCD Display Module with touch panel 142RGB x 428 Resolution and QSPI interface 2
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
  • Founded: 2009
  • Location: Hubei, Enshi
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Highly automated production processes
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlight systems
  • Versatility: Wide range of applications across industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Restricted color gamut compared to some alternatives
