1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics

  • 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics
  • 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics
  • 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics
  • 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics
  • 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics
  • 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics
Luogo di origine Cina
Marca HuaXin
Certificazione ISO14001/ ISO9001/IATF16949
Numero di modello ESHX0205FPOINO11-C001A
Quantità di ordine minimo 1000
Prezzo Negoziabile
Imballaggi particolari Blister+scatola di schiuma+sacca a bolle+all'interno del cartone+cartone
Tempi di consegna 6 settimane ~ 8 settimane
Termini di pagamento T/t
Capacità di alimentazione 50k al mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Visualizza tecnologia Modulo di visualizzazione AMOLED Nome Colore OLED
Misurare 2,5" Risoluzione 368*488
Luminosità 800cd/m2 Interfaccia mipi QSPI
Evidenziare

1.51 inch transparent OLED display

,

mini transparent OLED panel

,

AMOLED display module for electronics
Lasciate un messaggio
Descrizione di prodotto
1.51 Inch Transparent OLED Panel Mini Transparent OLED Display
1.51-inch transparent OLED display with 128×56 resolution, 24-pin plug-in interface. Ideal for smart windows, creative electronics, and self-luminous transparent screen applications.
Product Parameters
Attribute Value
Display Technology AMOLED Display Module
Resolution 128×56
Screen Size 1.51 inch
Display Color Blue
Pin Count 24PIN
Interface 3-bit68XX/80XXParallel4-wireSPl 12C
Active Area 35.05×15.32 mm
Module Size 42.04×27.22×1.25 mm
Driver IC SSD1309
Part Number HX2856KLBG01

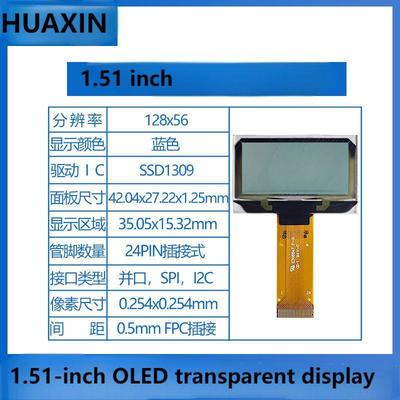

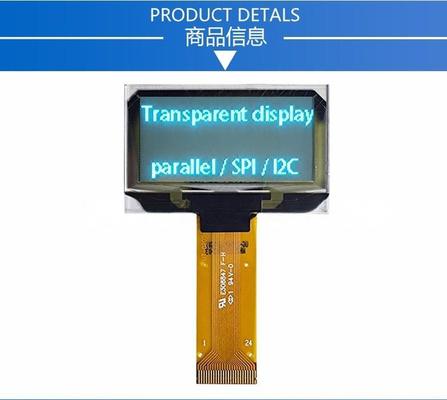

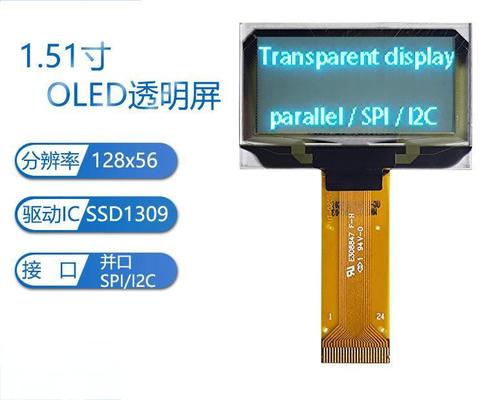

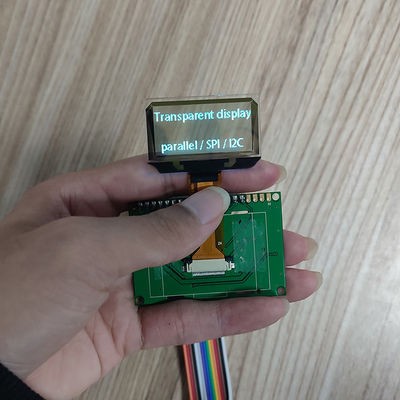

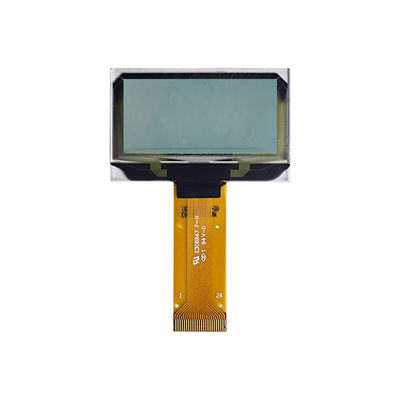

Product Images
1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics 0 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics 1 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics 2 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics 3 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics 4
Drawing and Pin Definition
1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics 5 1.51 Inch Transparent Oled Panel Mini Transparent Oled Display For Creative Electronics 6
OLED Product Knowledge
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast and color saturation
  • Lower power consumption
OLED Disadvantages
  • More expensive than LCD and TFT
  • Shorter lifetime than LCD and TFT
Company Information
Huaxin Advantage
  • Factory base located at inland city with cost-effective operations
  • Most advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineers with over 20 years experience in LCD field
  • Custom product design capabilities
Our Certificates
ISO14001 / ISO9001 / IATF16949 / SGS of LCD module
Company Details
  • Huaxin Technology (Enshi) Co., LTD
  • Hubei, Enshi
  • Founded: 2009
  • High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series
  • Registered capital: twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Safety box & instrument
  • Lock & smart home
  • Transmitter & watch
  • Watch & radio
  • Collimator & navigator
AMOLED Display Characteristics
  • Self-Emissive Pixels
  • Contrast Ratio
  • Color Accuracy and Vibrancy
  • Viewing Angles
  • Power Efficiency
  • Thinness and Flexibility
  • Response Time
Power Efficiency Comparison
Power Consumption
  • AMOLED displays consume power per-pixel, with dark content using minimal power
  • LCD/LED displays require constant backlight power regardless of content
Content Dependency
  • AMOLED more efficient for dark content as pixels can be turned off
  • LCD/LED power consumption remains constant regardless of content
Brightness Control
  • AMOLED can adjust pixel brightness individually for better efficiency
  • LCD/LED typically have fixed backlight brightness
Display Size
  • AMOLED more efficient for smaller displays as consumption scales with pixels
  • Larger LCD/LED may require more power-hungry backlights
