11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness

  • 11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness
  • 11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness
  • 11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness
  • 11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness
  • 11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness
Luogo di origine Cina
Marca HuaXin
Certificazione ISO14001/ ISO9001/IATF16949
Numero di modello HX20QBC73.A
Documento HX20QBC73.A SPEC.pdf
Quantità di ordine minimo 180
Prezzo $108
Imballaggi particolari Blister+scatola di schiuma+sacca a bolle+all'interno del cartone+cartone
Tempi di consegna 6 settimane ~ 8 settimane
Termini di pagamento T/T
Capacità di alimentazione 50k al mese

Contattimi gratis campioni e buoni.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Visualizza tecnologia Display AMOLED HD Nome Display LCD OLED
Misurare 11.2" Risoluzione 2560RGB*1536
Luminosità 450c/d Interfaccia MIPI a 2 porte
Guida IC RM692H0
Puoi spuntare i prodotti di cui hai bisogno e comunicare con noi nella bacheca.
Lasciate un messaggio
Descrizione di prodotto
HX20QBC73.A is 11.2 inch amoled display module with oncell touch   Display color: 1.07B (RGB x 10 bits)  and Display format: 11.2” (2560RGBx1536) and Pixel arrangement: Real RGB
Display Interface: MIPI 2-port D-PHY  TP Interface: SPI   Driver IC : RM692H0 , Touch screen: On-cell; Touch IC: GT6975P
Product Parameter
Part No. HX20QBC73.A
Display Size 11.2 inch AMOLED display
Outline Size (mm) 249.22*154.08
AA Size (mm) 244.22*146.53
Resolution 2560RGB*1536
Interface MIPI 2-port
Brightness 450c/d
View Angle all
Driving IC  RM692H0
Touch screen On-cell
 Product Picture

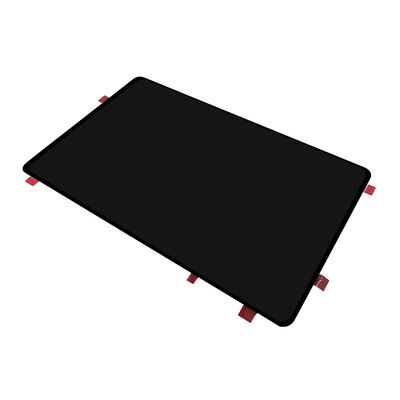

11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness 0

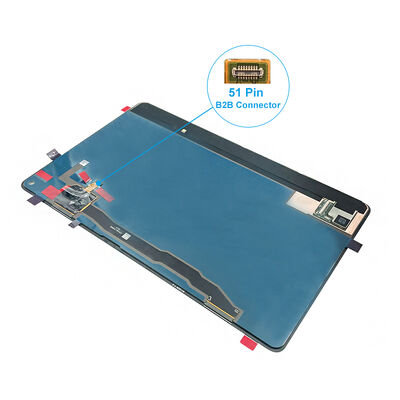

11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness 1

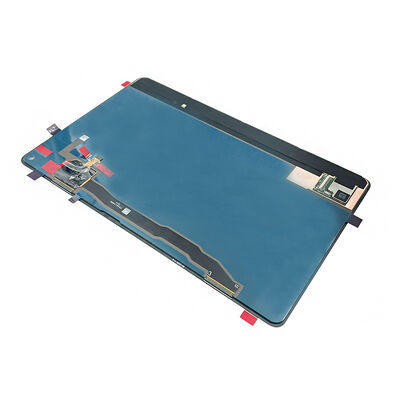

11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness 2

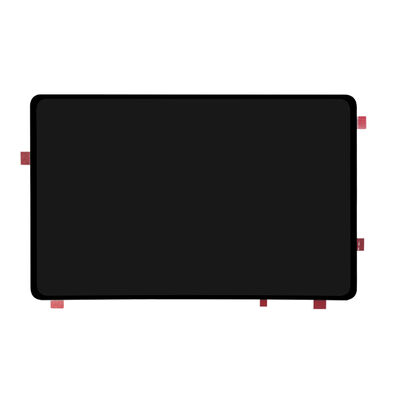

11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness 3


Drawing & Pin Definition
11.2 Inch High Resolution AMOLED Display Module with oncell touch, 2560*1536 Dots and 450c/d Brightness 4
OLED Product Knowledge
OLED Advantages:
  • Lighter and thinner than LCDs
  • High contrast ratio
  • High color saturation
  • Lower power consumption
OLED Disadvantages:
  • AMOLED is more expensive than LCD and TFT
  • Lifetime is shorter than LCD and TFT
Company Information
Huaxin Advantage:
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders with 20+ years experience in LCD field
  • Self design for customized product
Our Certificates:
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Application
  • Safety box & instrument
  • Lock & smart home
  • Transmitter & watch
  • Watch & radio
  • Collimator & navigator
AMOLED Display Characteristics
  • Self-Emissive Pixels
  • High Contrast Ratio
  • Color Accuracy and Vibrancy
  • Wide Viewing Angles
  • Power Efficiency
  • Thinness and Flexibility
  • Fast Response Time
Power Efficiency Comparison
1. Power Consumption:
AMOLED displays consume power on a per-pixel basis, meaning that pixels displaying black or dark content consume very little power, while pixels displaying bright or white content consume more power. LCD and LED displays require a constant backlight that consumes power regardless of the displayed content.
2. Content Dependency:
AMOLED displays are more power-efficient for content with dark or black areas, as individual pixels can be turned off to save power. LCD and LED displays consume a relatively constant amount of power as the backlight remains active.
3. Brightness Control:
AMOLED displays can dynamically adjust pixel brightness for better efficiency in low-brightness scenarios. LCD and LED displays typically have fixed backlight brightness, resulting in higher power consumption.
4. Display Size:
AMOLED displays tend to be more power-efficient for smaller sizes as consumption scales with pixel count. Larger LCD/LED displays may require more power-hungry backlights, reducing efficiency compared to same-size AMOLED displays.
